My First Submisson

[Compnerd88]

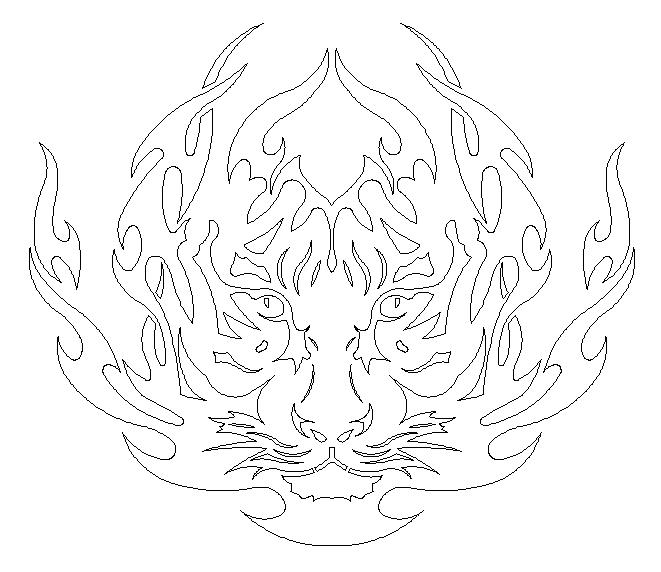

Had a customer request a "Flame Cat" design....this is what I came up with and figured I'd share. This was programmed to cut on a Waterjet just so you know

lion.dxf

-Logan

[plasmajoe]

Thank you Logan, very nice file. Thanks for the heads up about the waterjet.

Plasma Joe

[BrianMick]

Wow logan, my eyes go buggy just trying to follow all the flames to see if it willl cut good. great job
Brian

[parrotlady]

Excellent work! Thank you!

April

[hdfaster]

Great job combining the lion with the flames.
THANKS!

[Compnerd88]

Here is a picture of one cut...The picture you see is of the initial program...I edited the spots i didn't think looked right and it should provide a better part than the one you see here.


-Logan

[AZWOODMAN]

Do you mind reposting the final dxf file....I would love to cut that one out for my shop...Thanks in advance, great looking work.

[Compnerd88]

The file posted is the revised copy. The picture I posted of the part was the first program, the file is the updated .dxf

-Logan

[Chopper John]

Nice drawing Logan. What type of waterjet do you run, I have an Omax 55100.

[Compnerd88]

I run a gantry style Flow machine. With a 10' x 20' foot table, hyperjet 100 pump setup running at 93,000 psi.

I'll try and post some pictures later

-Logan

[Larry83301]

I?m jealous! Which I had a 10' by 20' machine. Mine machine only cuts 27" by 40", and only wood for now ( no coolant).

Larry

[Compnerd88]

LOL! Its actually one of the largest on the East Coast. Ive cut everything from 1/4" Neoprene Rubber to 6" thick Stainless Steel.

-Logan

[AIRFLOWKID]

Logan,
I envy you! I have a plasmacam DHC with HT 600.


Tim
Red Robin Creatives

[Chopper John]

Just a curiosity question. Did you use conversion software on this, or trace it ? I noticed the extremly low amount of elements in this drawing, and as you know a waterjet wants to go to every end point. This would cut very quick with all those smooth arcs.

[Compnerd88]

Nice Observation...

Some elements of the face were traced, the rest was hand drawn by me. Its completely original

-Logan
