Here is a gate design that is based on one I saw in Otranto, Italy last week. They used 2" square tubing along with flat stock and decorative finials to make a beautiful gate.

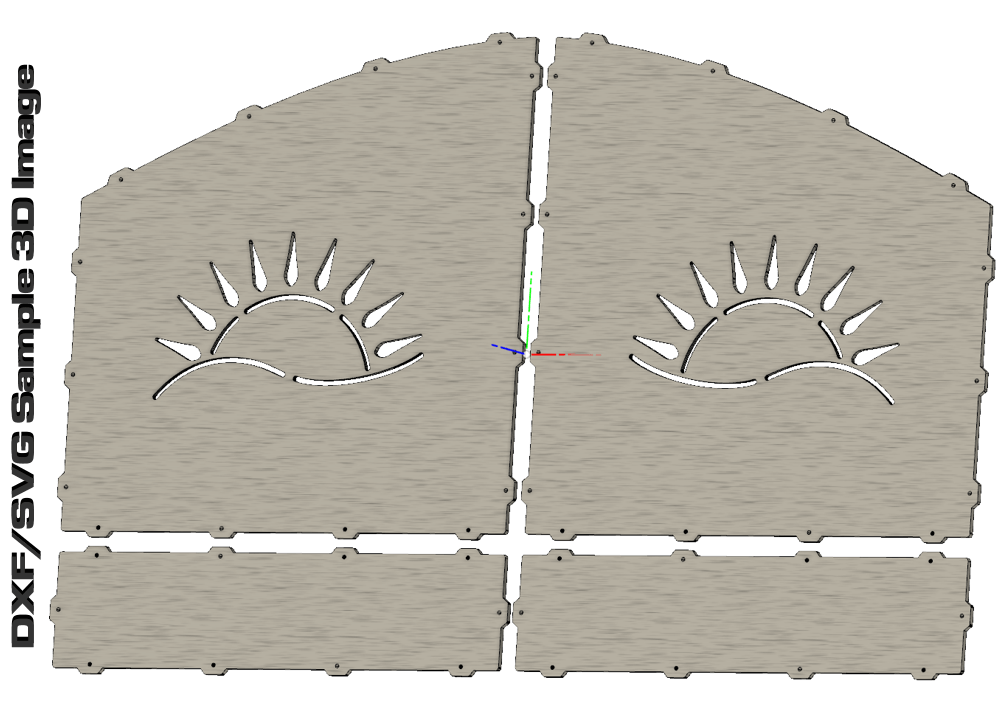

I drew up 3 different bottom panels, 12" 18" and 30" high. All the panels are 48" wide.

Hopefully you can use some of this to design a gate of your own.

Sunrise Upper Panel.dxf

Sunrise Lower Panel 30 inches.dxf

Sunrise Lower Panel 18 inches.dxf

Sunrise Lower Panel 12 inches.dxf

Sunrise Gate Closeup.jpg

Sunrise Gates Complete.jpg

[East German]

Thanks

Peter

[plasmanewbie]

Beautiful looking gate indeed! Appreciate you sharing your design, this may come in handy at some point. Is that the gate you took the inspiration from or is that one that you built?

[jmersereau]

Beautiful looking gate indeed! Appreciate you sharing your design, this may come in handy at some point. Is that the gate you took the inspiration from or is that one that you built?

This is not my design and I did not build this yet, I saw it on my travels last week and liked the simplicity of it, I also like the way they did the door pivots & hinges. I want to make this when I get back home so I drew up the dxf's.

[plasmanewbie]

10-4, thanks Jim.

[Jonjeff]

Thank you. Nice work.
