Hello. 5x10' plasmacam table grate file ???? please.

[anthonyoo7]

Hello , im looking for a dxf or dwg file of the table grates on a plasmacam 5 x 10' table. I have seen 4x8 but not 5x10. Thank you for any help, and keep this site going, its great for learning.

[eibmal]

Here ya go mate.

Samson Grate.pcm

[goyoasturias]

please can you be a dxf file? many thanks from Spain

[MQUICK]

goyoasturias, are you using PlasmaCam software? It uses pcm.

[goyoasturias]

Hi, I have plasmacam. I have a 5x10 torchmate3 and wanted to put a grid quality

[SignTorch Vector Art]

To export a DXF file from plasmacam, hit FILE then EXPORT, then select DXF as the format to save, choose a destination folder, enter a filename, check the boxes for arcs and polylines, and it will save a DXF file to the selected location.

pcam export dxf.jpg

[goyoasturias]

Sorry but the translator does not transmit my words. I have no plasmacam, I have Torchmate CAD.

my apologies

[Dennis]

here you go

samsongrate.dxf

[goyoasturias]

many thanks!!!

[mayper]

thanks for sharing

[Ironbite]

Hi I'm new to this site but a long time welder/fabricator. I am looking for the dxf file to replace the grates for a 5'x10' plasma table.
Much appreciated!!

[adbuch]

Hi I'm new to this site but a long time welder/fabricator. I am looking for the dxf file to replace the grates for a 5'x10' plasma table.
Much appreciated!!

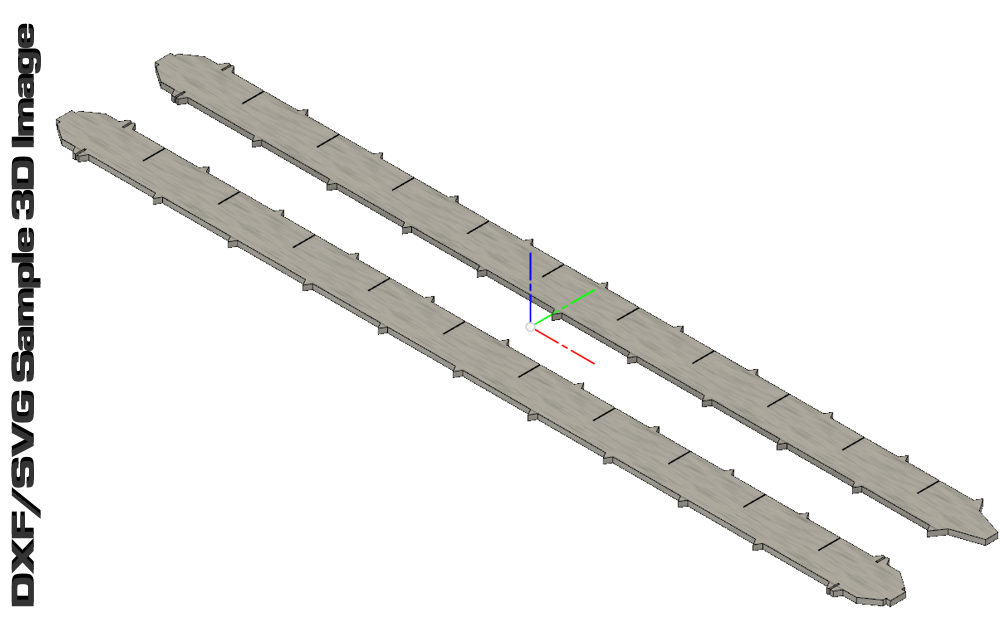

SamsonGrate311.pcm

SamsonGrate311(1).dxf

[Joe Jones]

Yeah ... There are better designs out there, but those will work.

I suggest you ditch the Samson 510 "waffle" grates and replace them with traditional 1/8"x2" curved flat bar set on edge. The Samson grates work ... but they are a total PITA.

Joe

[Joe Jones]

Four options. Easily modified for a 4x4 table too. Individually replaceable grate points

Joe

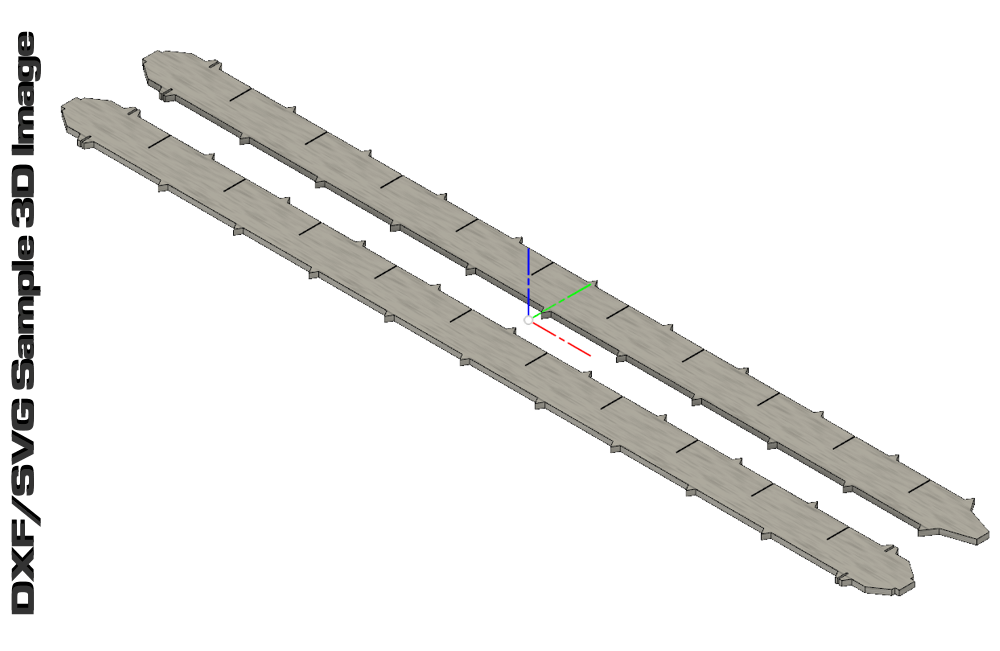

SamsonOriginalGrates.dxf

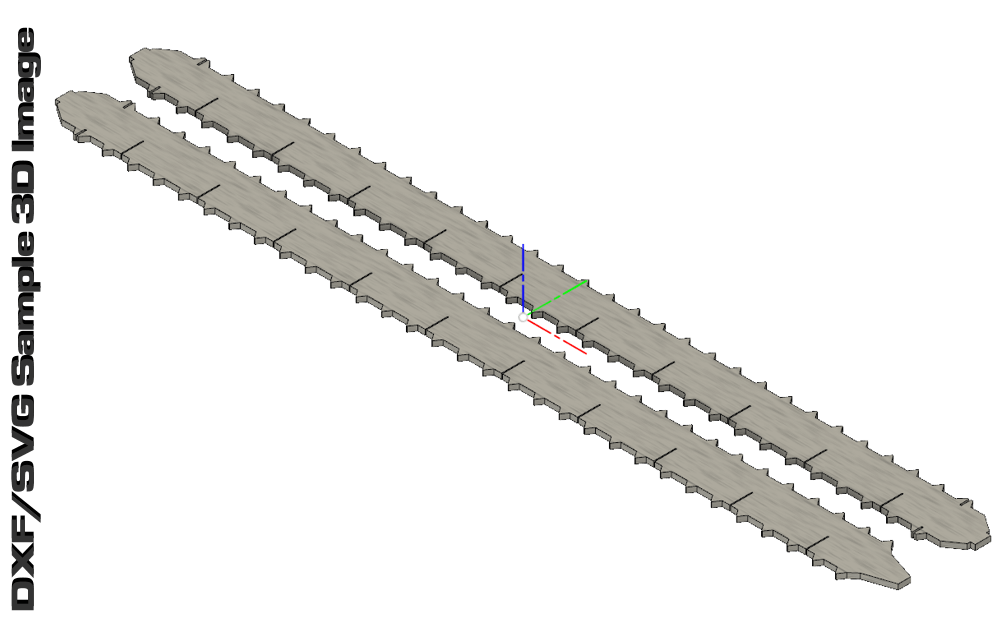

SamsonEnhancedGrate.dxf

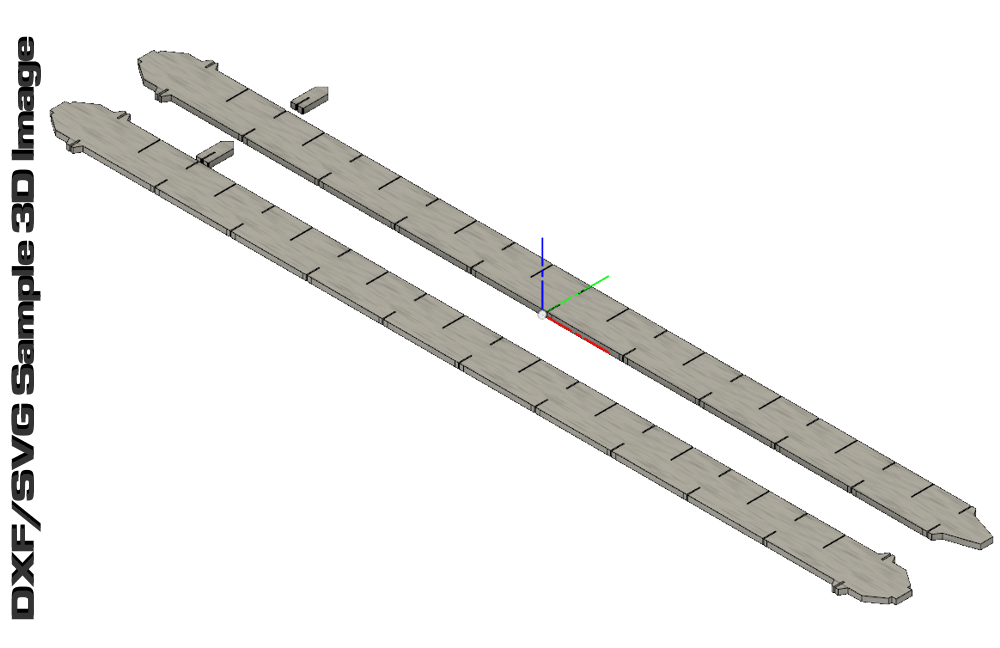

SamsonOriginalGratesPoints.dxf

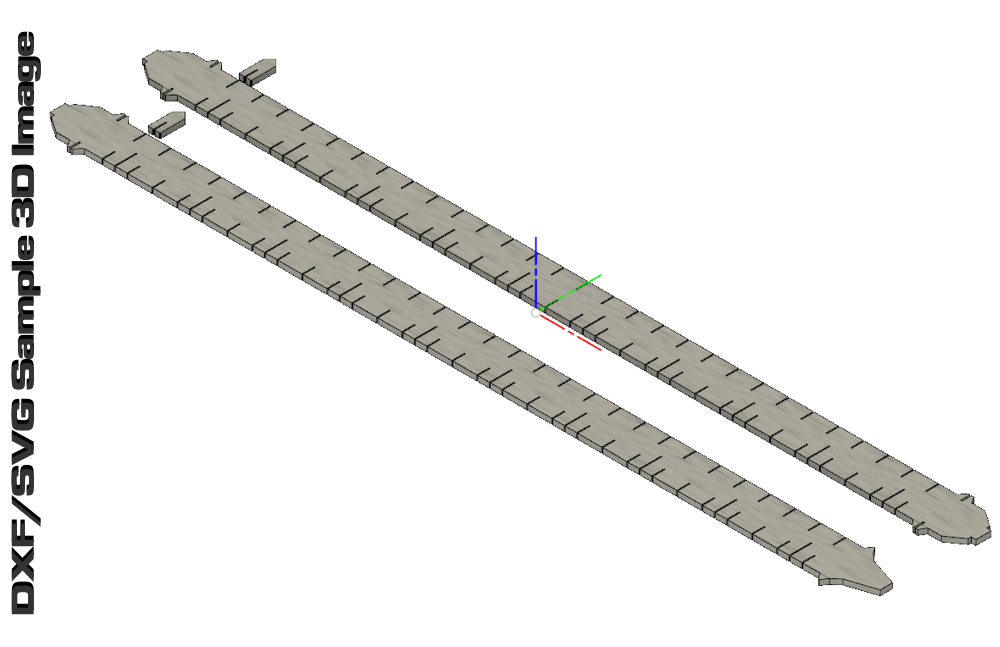

SamsonEnhancedGratesPoints.dxf

[AREA]

Awesome selection to choose from in the topic. I think I will do the replaceable points version Joe posted. Thanks guys

[Joe Jones]

Awesome selection to choose from in the topic. I think I will do the replaceable points version Joe posted. Thanks guys

I drew that one because it made sense. If the small tabs at the ends of the grates slip into a slot to align the material with the edge of the cutting area, why can't the individual points be replaceable as well?

I have not CUT these grates to test them, so the drawing is simply a modification of the original PlasmaCam files. I don't see why they would not work though.

Joe
